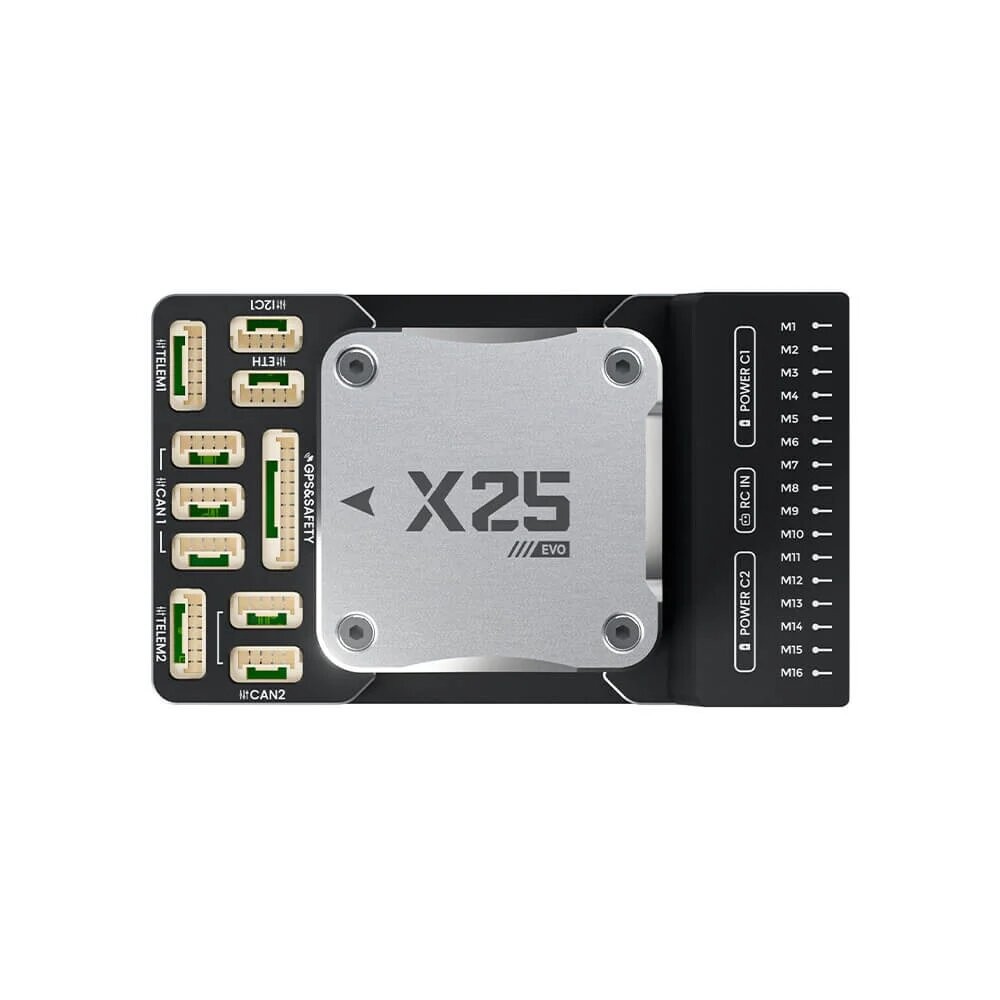

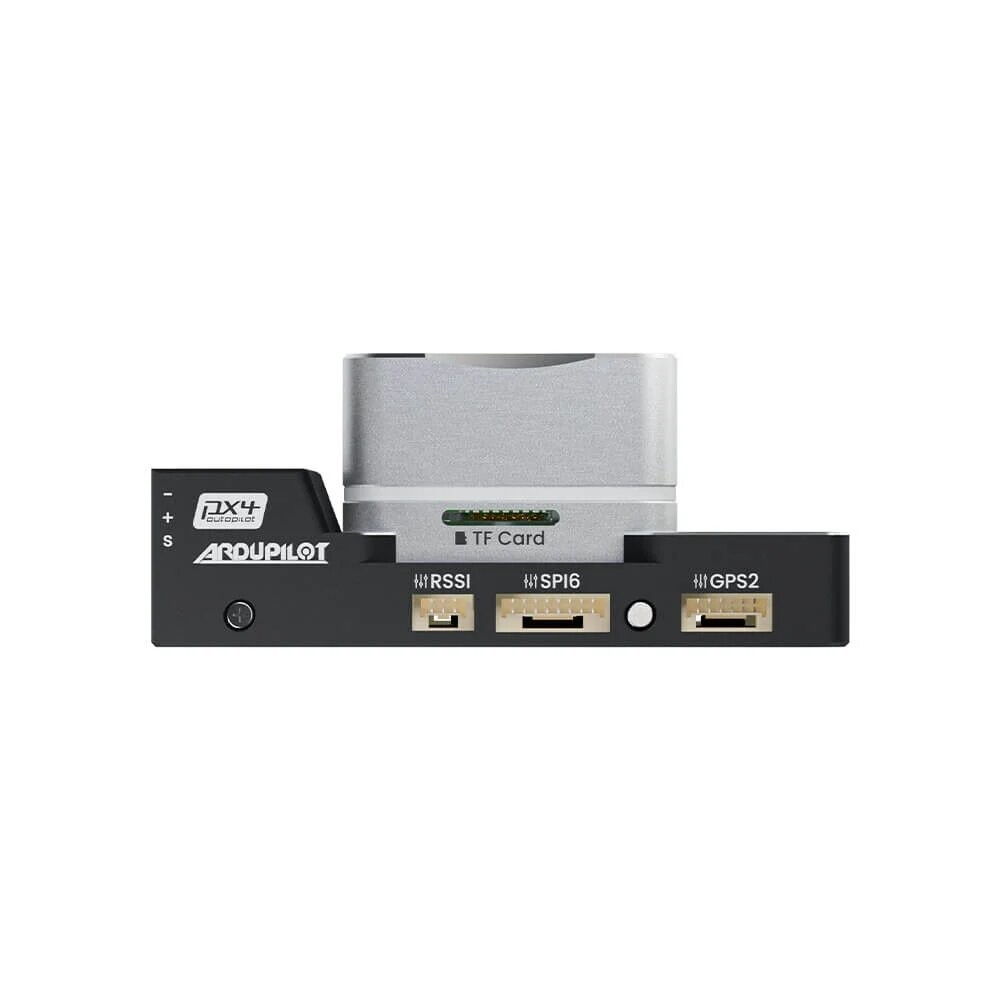

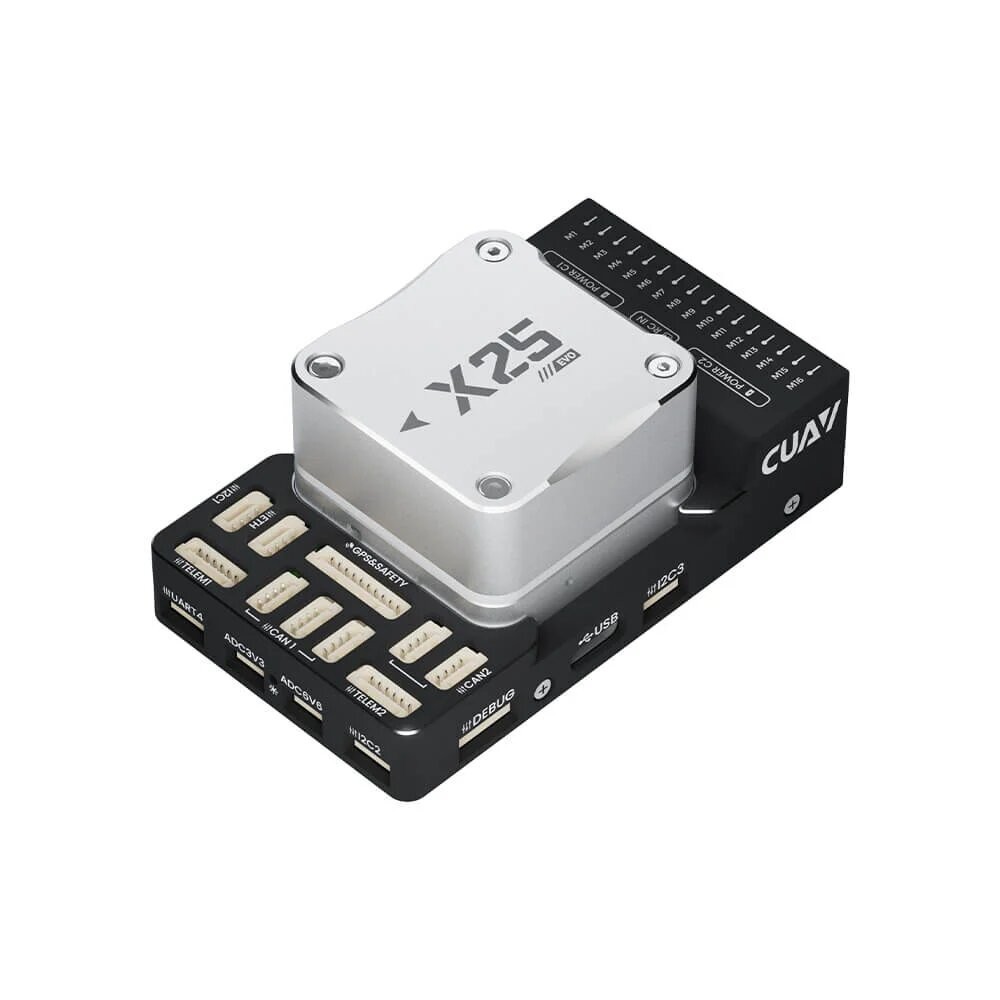

Disruptive Wide-Range Power Supply Architecture

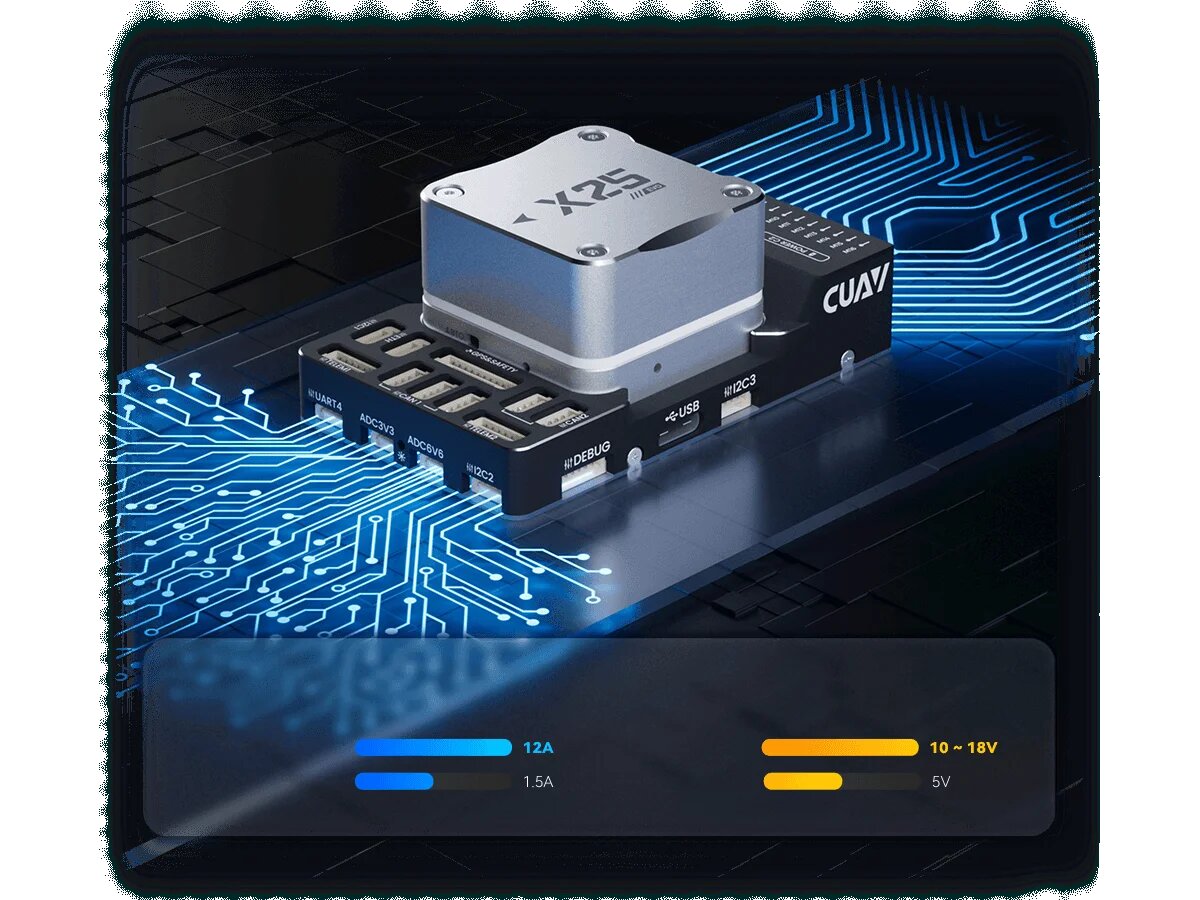

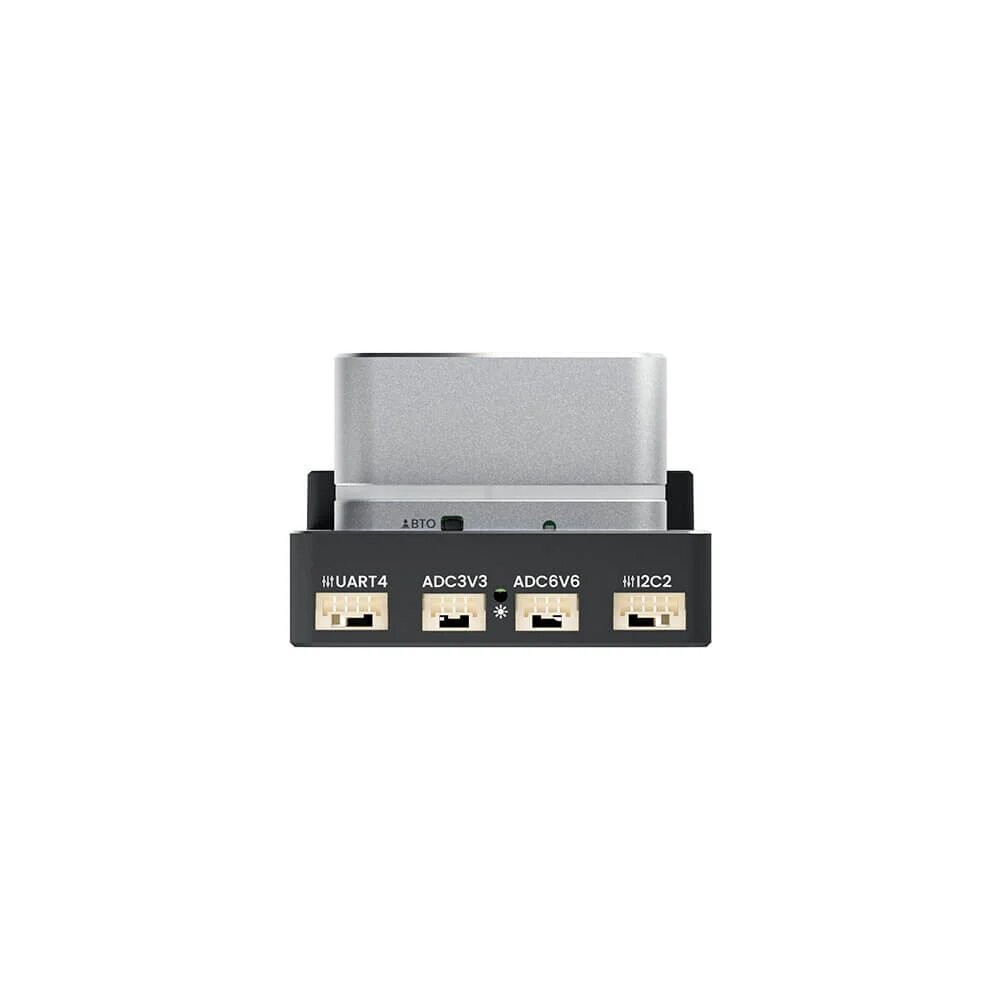

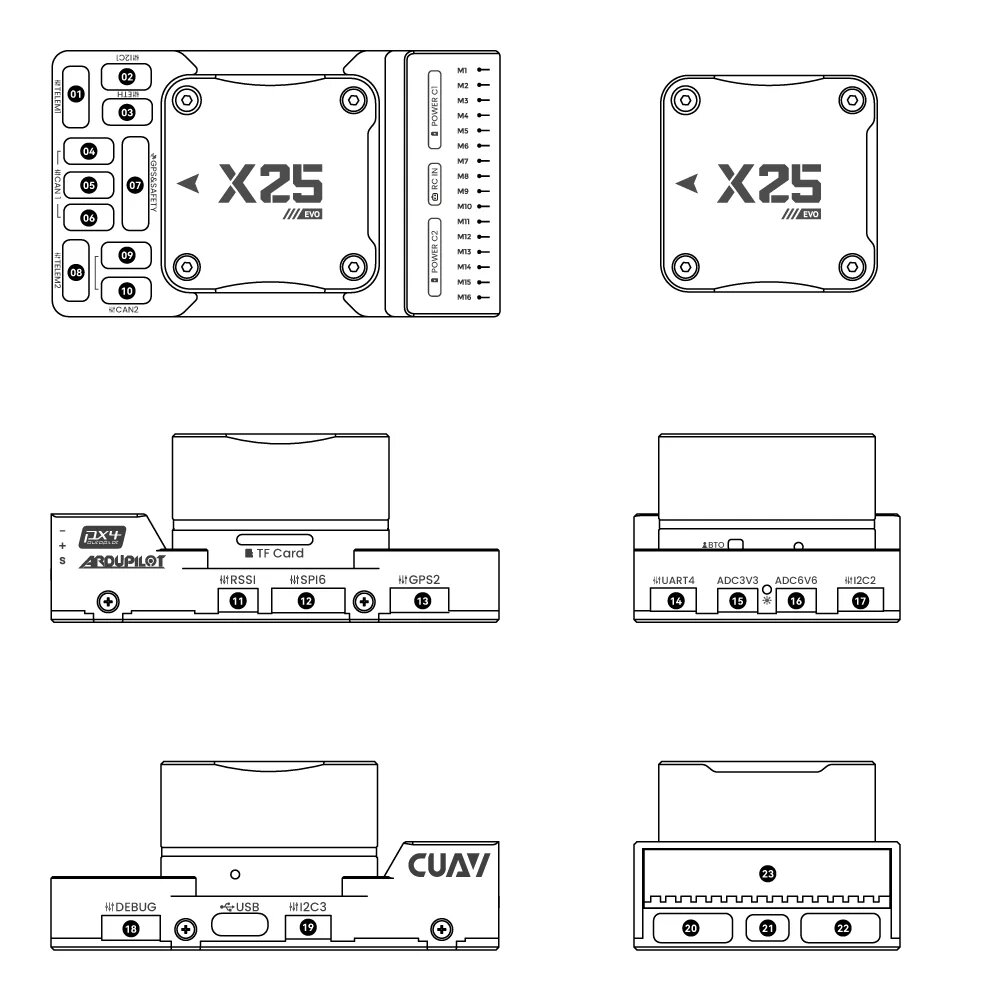

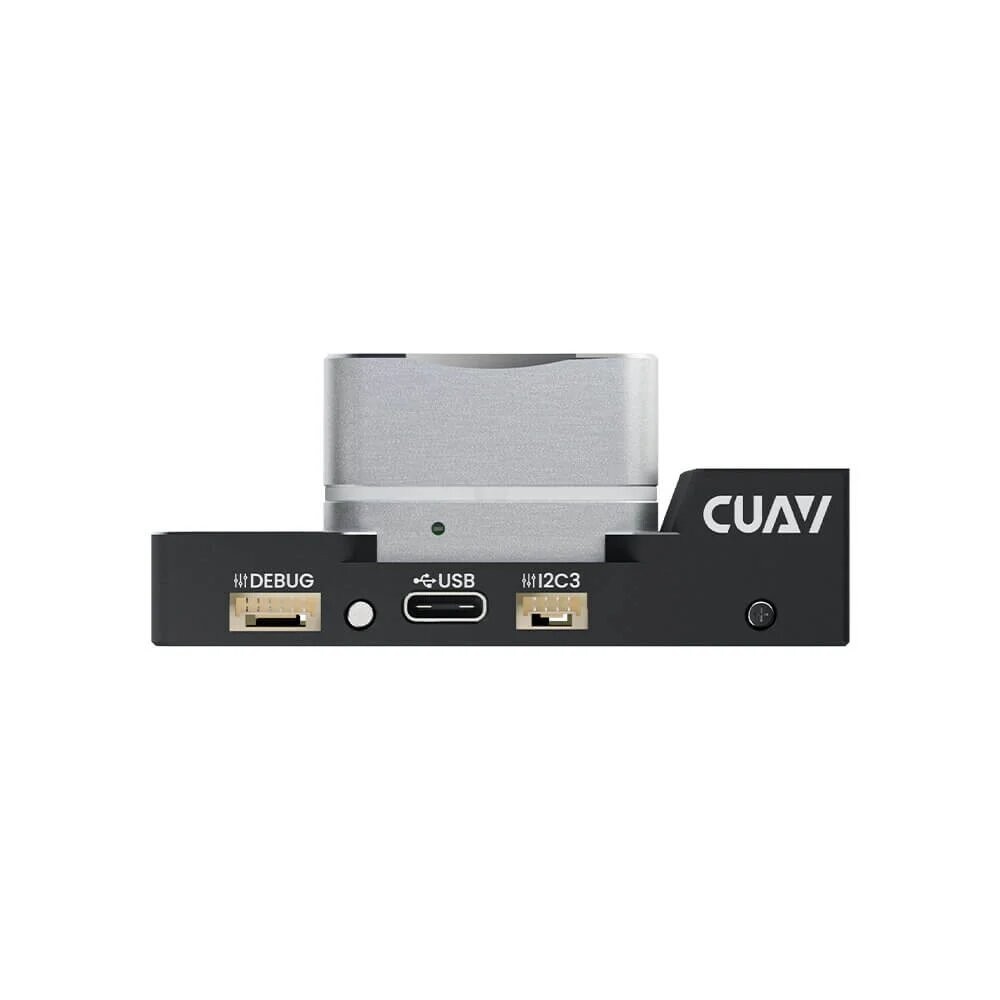

X25 EVO is fully upgraded to 10V ~1 18V high-voltage power supply,

significantly improving power supply efficiency. The baseboard has a built-in

5V/15A DC-DC high-power converter, and the external interface supports

5V/12A output, empowering heavy-load devices.

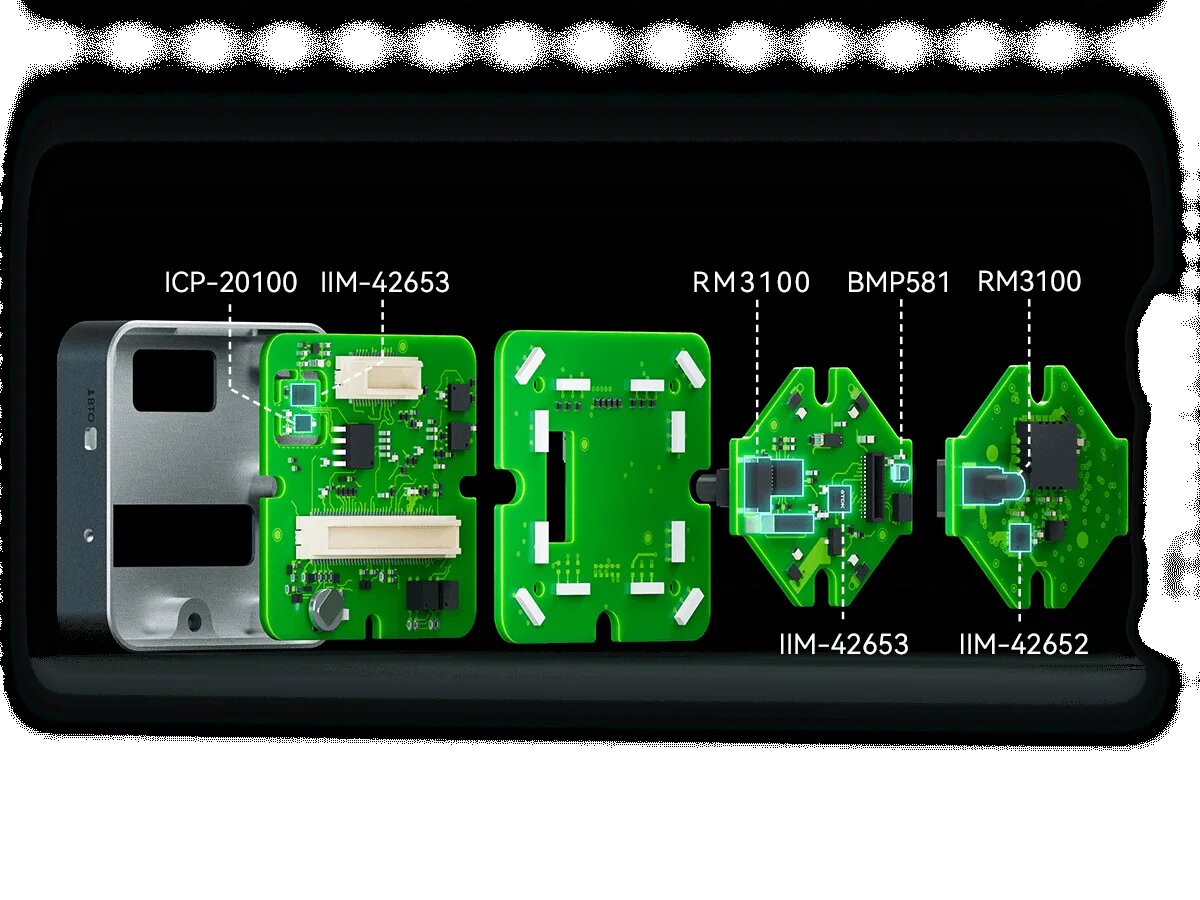

The non-similarity IMU sensor matrix is composed of 3 sets of TDK industrial-

grade IMUs, 2 sets of barometers and the industrial-grade RM3100 anti-

interference magnetometer. It supports failover and ensures safe operation in

various complex environments.

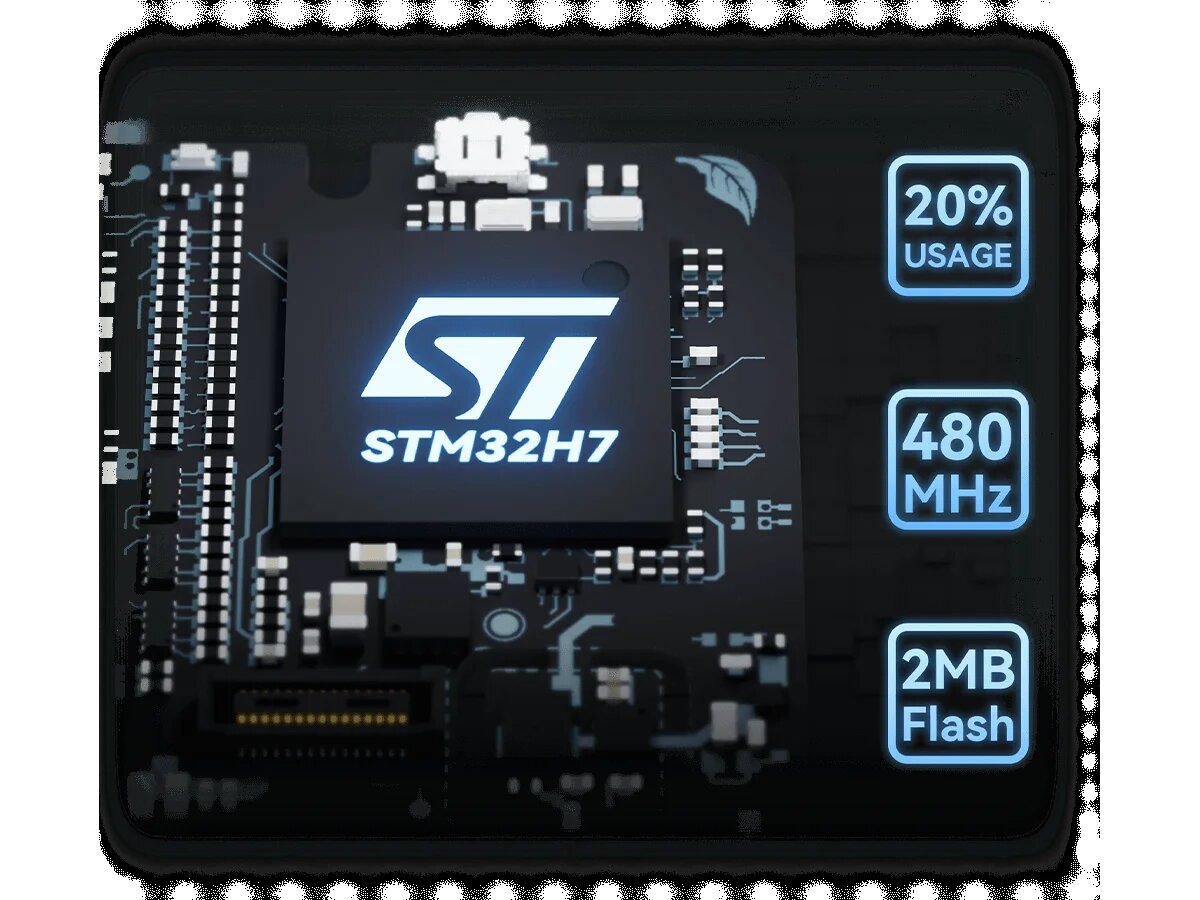

It adopts High-Performance STM32H7 processor, bringing powerful intelligent

computing power to the system and supporting secure boot and secure firmware upgrade services. During operation, the CPU occupancy rate is lower, and it is compatible with the complete ArduPilot and PX4 drivers and functions (such as IMU temperature learning, non-GPS navigation, FFT filtering algorithm and LUA script, etc.), and provides ample space for follow-up development and compatibility with new drivers.

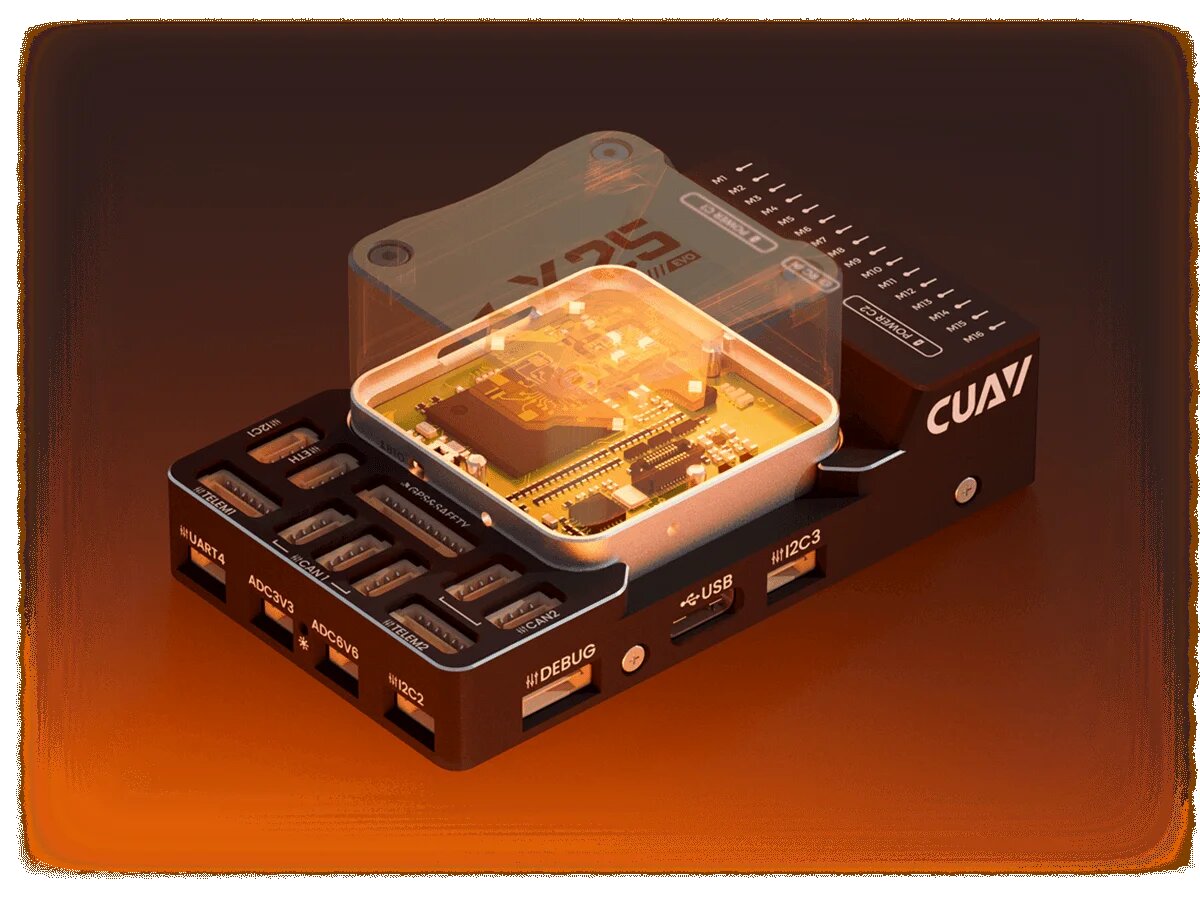

X25 EVO features a newly upgraded dual temperature compensation system.

The onboard IMU and the motherboard temperature control work in conjunction to build a constant temperature zone inside the controller, ensuring IMU, MCU and crystal oscillator are always kept in a constant temperature environment, maintaining system performance stability, reducing performance damage caused by temperature drift, and ensuring measurement accuracy.

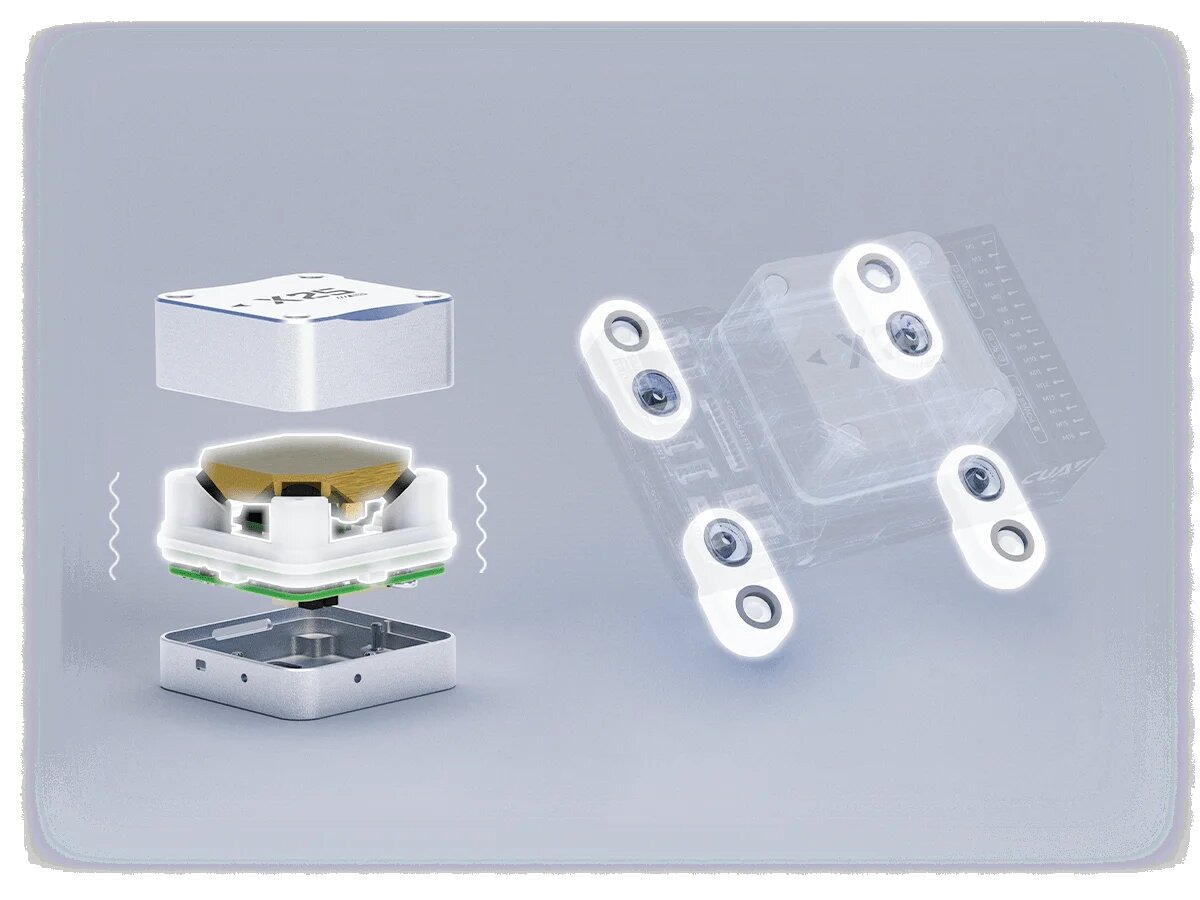

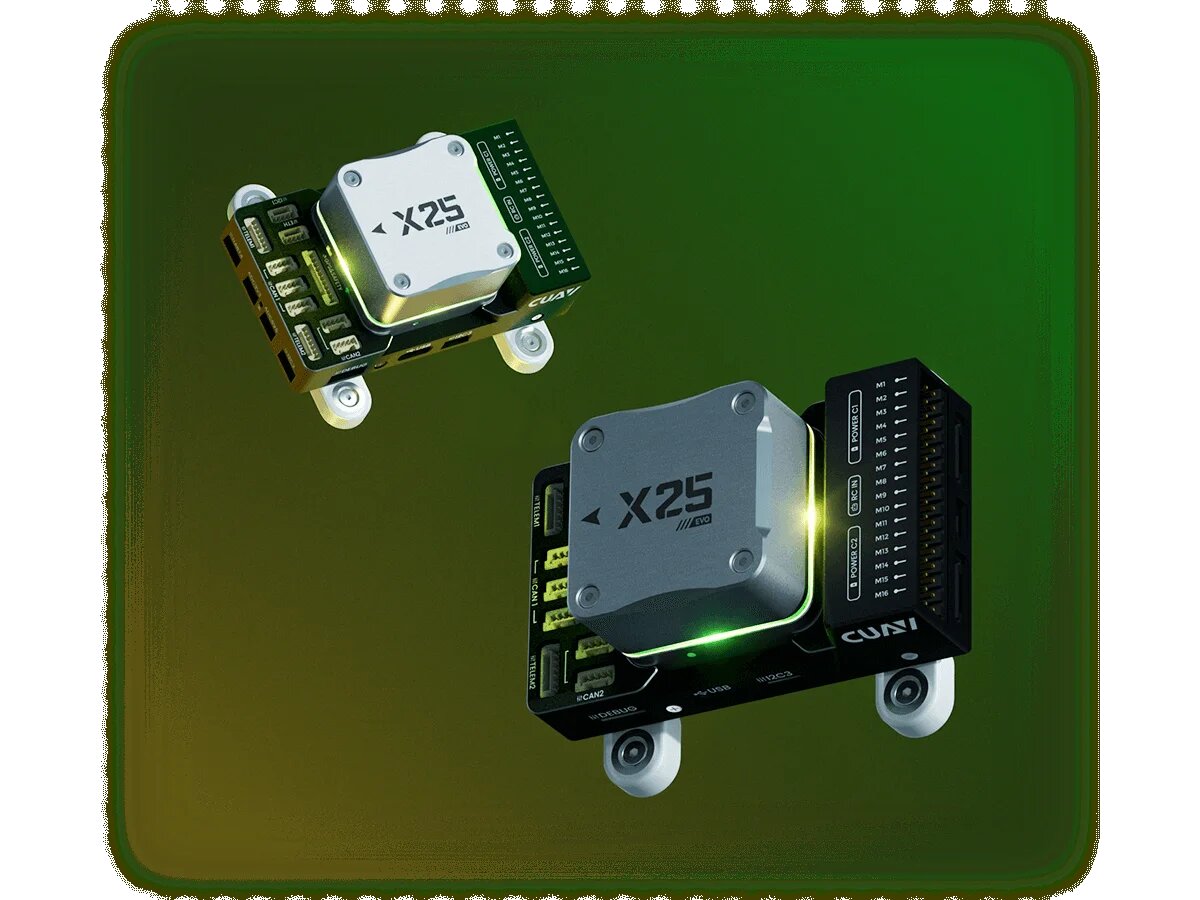

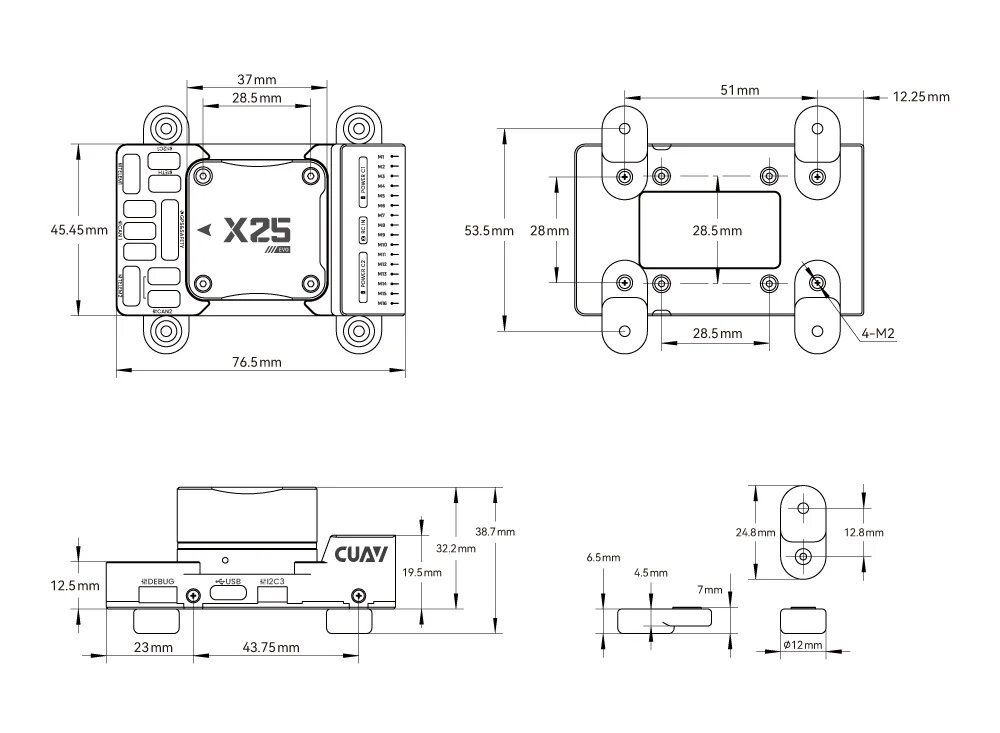

The newly upgraded CUAV patented fourth-generation tilt-symmetric

damping matrix shock absorption system, with an optional external fixed ear shock absorber to form a dual shock absorption system, can effectively suppress abnormal high-frequency vibration, reduce external interference, improve sensor data accuracy, and better adapt to different working conditions.

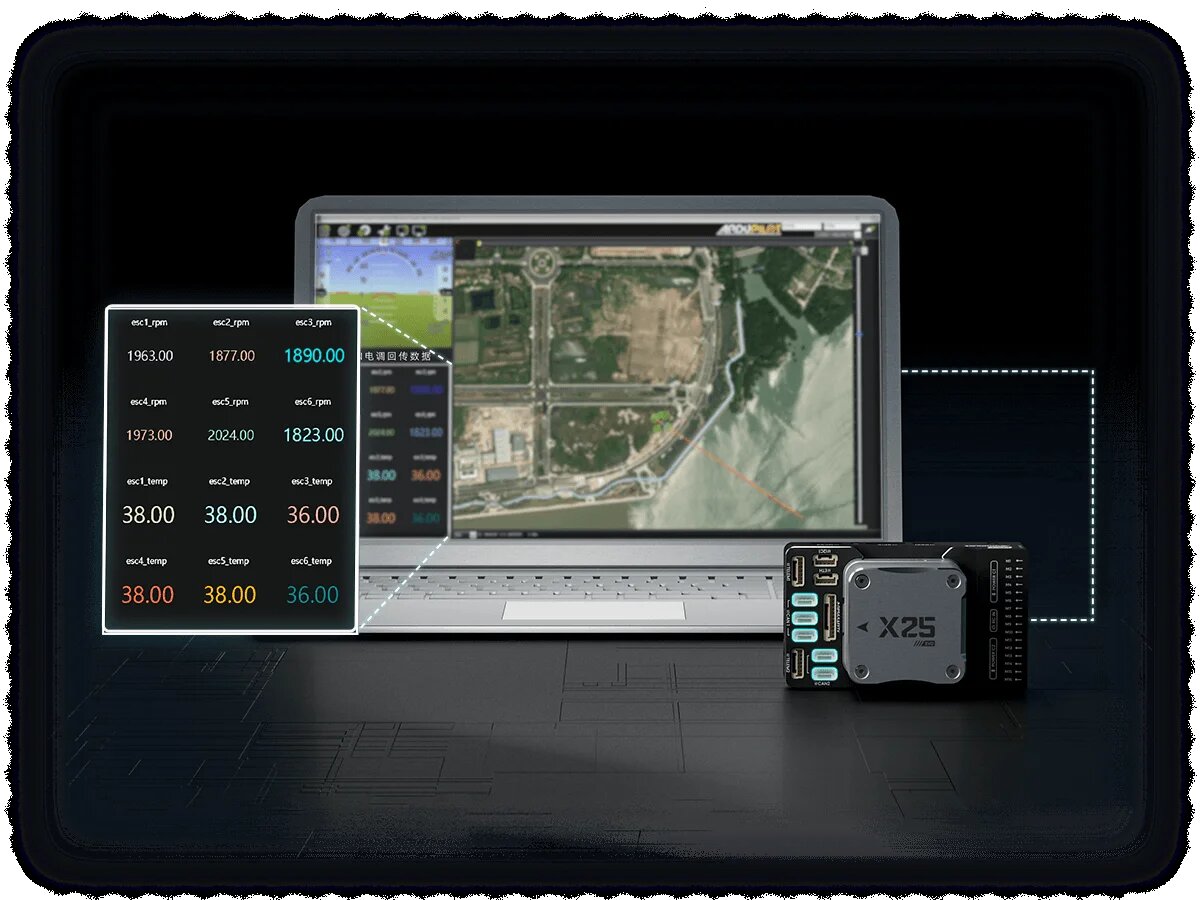

By connecting to intelligent battery and ESCs via CAN, X25 EVO can transmit

status, operating temperature and device information of intelligent batteries, motors, ESCs, servos and other system devices, enabling status monitoring among unmanned system devices and enhancing system safety.

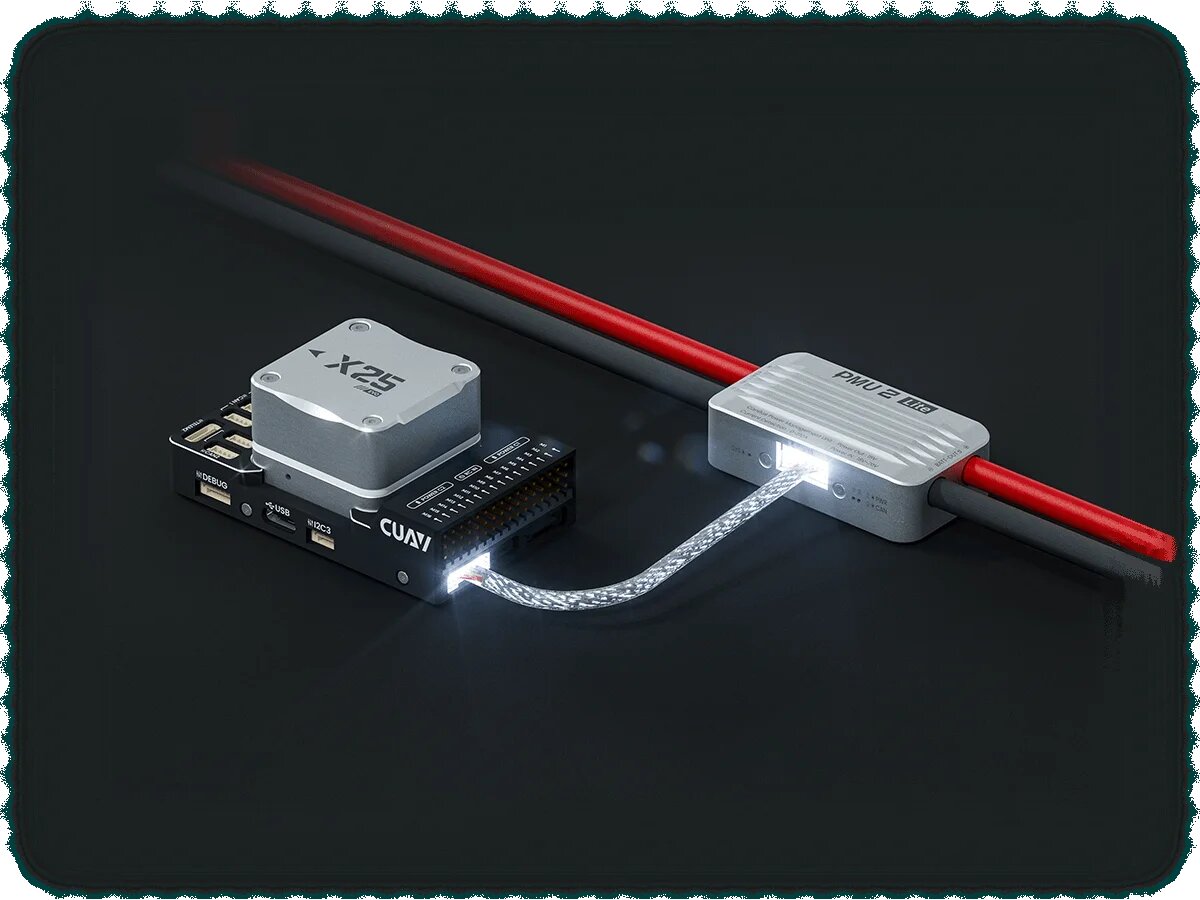

X25 EVO comes standard with PMU 2 Lite, which supports 70V voltage output

and 220A current detection. It also offers an optional PMU 2s with 140V input and 500A power monitoring.

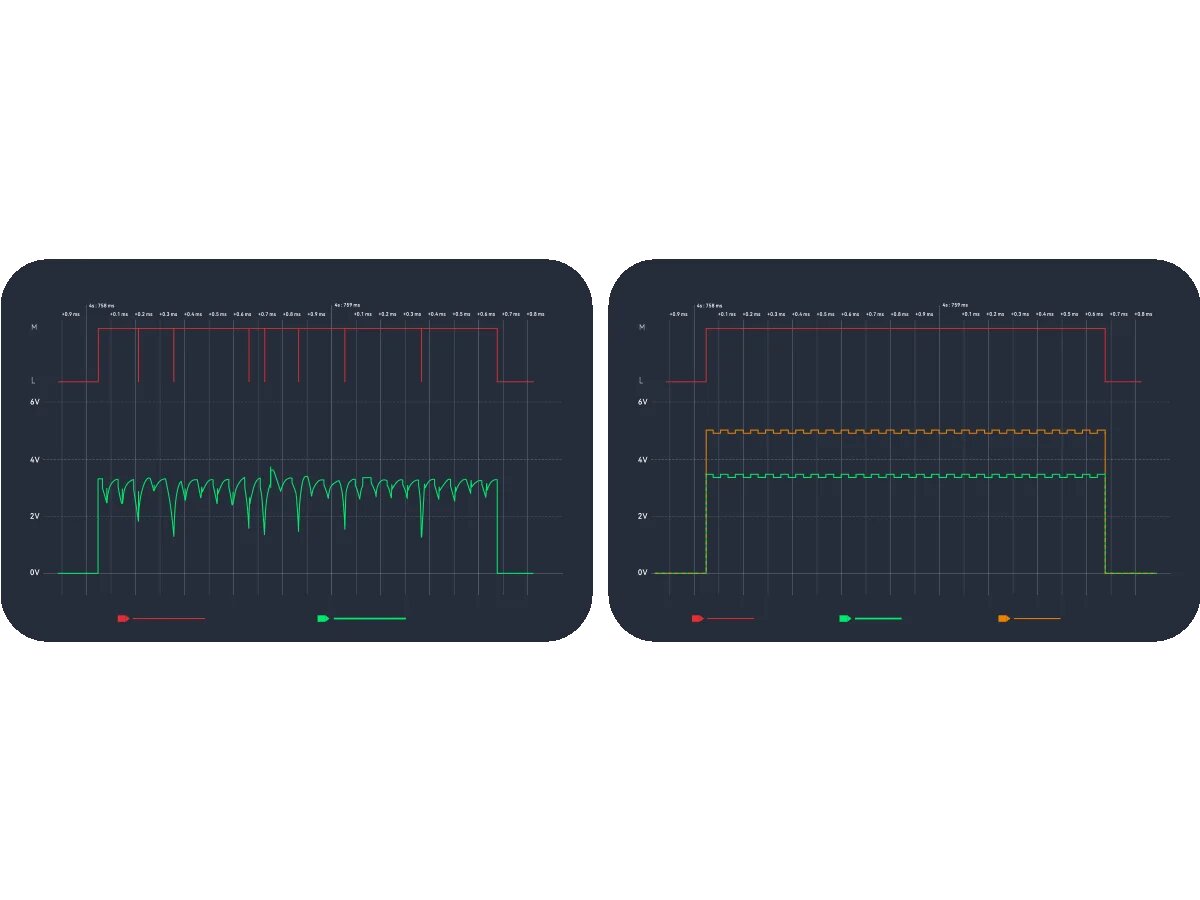

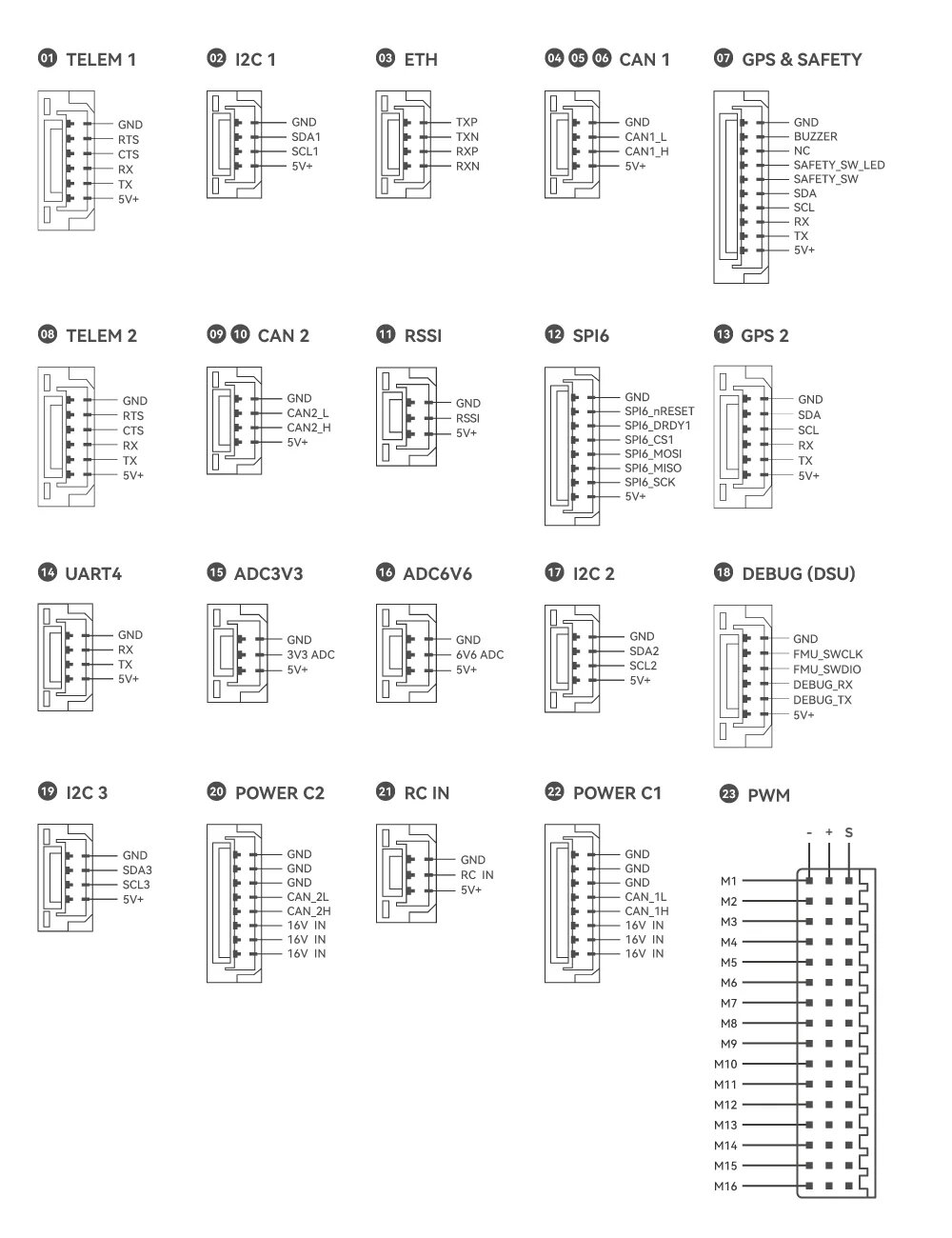

Built-in bidirectional multi-level converter supports 3.3V/5V PWM switching.

This effectively solves level or signal attenuation and distortion issues caused by long wiring, capacitive or high-impedance loads, ensuring smooth actuator operation.

Equipped with multifunctional RGB full-color status indicator light, intuitively

reflecting working status of controller through multi-colored lights. It can display a variety of status effects, covering modes such as unlock switch, battery level, positioning, fault, and more, enabling easy status judgment and troubleshooting, significantly improving work efficiency.
